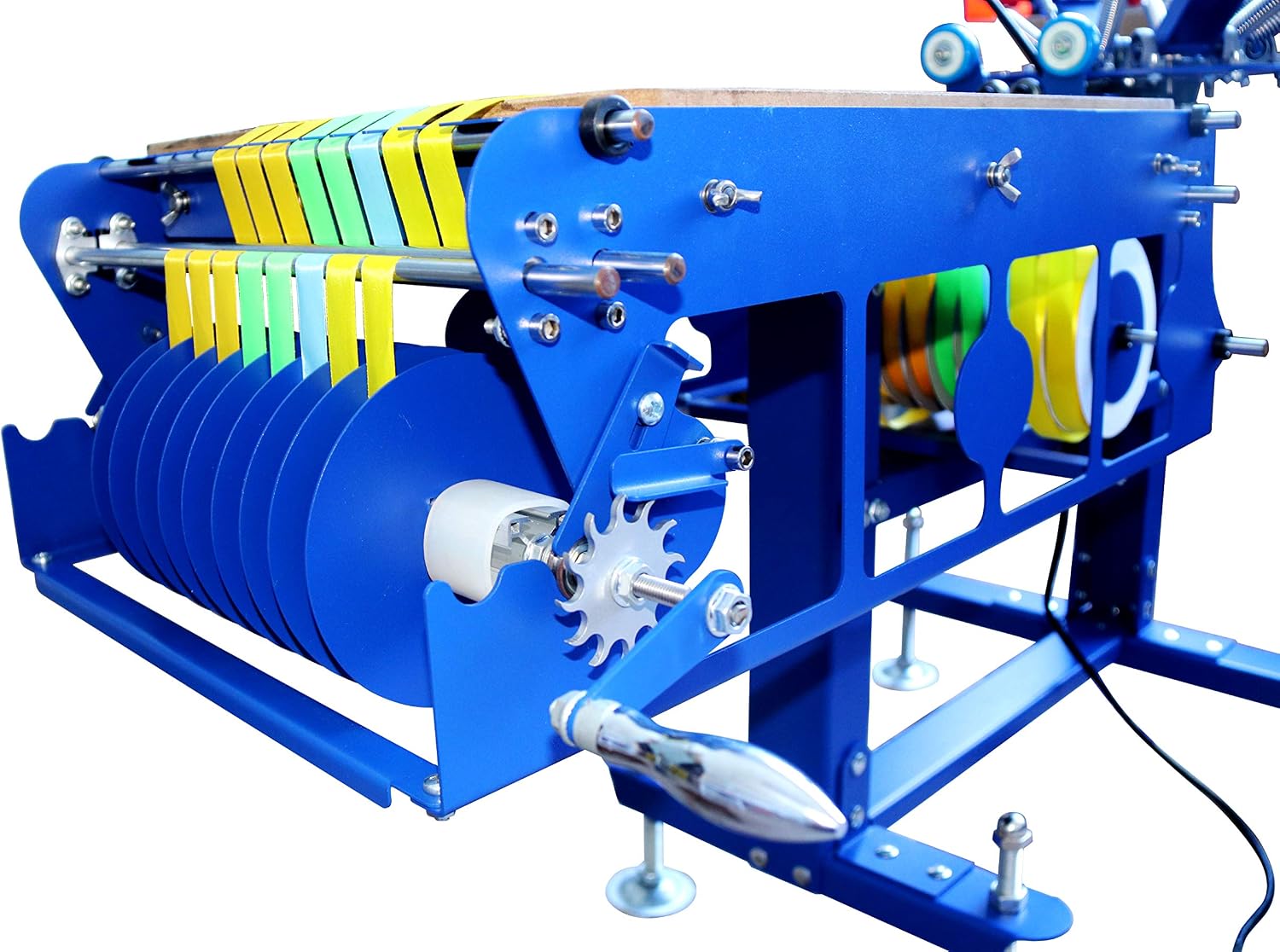

TECHTONGDA 3 Color 1 Station Silk Screen Printing Press Micro-Registration Screen Printing Machine for Fabric Ribbons with Flash Dryer

Ribbons are widely used in our daily life, and with various models and colors. Ribbons of different colors represent different meanings -- yellow ribbons symbolized "safe return"; Green ribbon symbolized "health and love"; Red ribbon symbolized the beginning of love. Ribbon is a strip of flexible material, usually made of cloth. There does not have words or patterns on ribbons. Printing words or various patterns onto the ribbon will make the ribbon more clearly expressed and raise the value of the ribbon to a new height. Most of the existing ribbon printing machines on the market are automatic equipment, which is only suitable for printing with the same pattern in large quantities. There is no way to print small quantities (e.g. 100-300 meters). The market for printing ribbons in small batches is huge.Item included(006552): 3 color 1 Station Ribbon Screen Printing Press with Dryer

• Item included(006552):3 color 1 Station Ribbon Screen Printing Press with Dryer
• The machine is designed for easy operation and the user can operate on the seat. The height of the platform can be adjusted withins 7 inches according to differen need. The min height of the platen is 22 inches. The max height of the platen is 30 inches. Pallet size: 16x20 inches It is suitable for screen frame whose inner size is 14 inches wide and 20 inches long; Printing area is 12 inches wide and 17 inches long.
• To ensure the accuracy of the printing, the machine is equipped with five installation mold for different width of ribbon. 0.6" wide mold can print 14 rolls of ribbon at a time; 0.8" wide mold can print 11 rolls at a time; 1" wide mold can print 9 rolls of ribbon at a time; 1.2" wide mold can print 8 rolls of ribbon at a time; 1.6" wide mold can print 6 rolls of ribbon at a time; The max diameter of one roll is 6".
• This machine is 3 color screen printing machine, and equipped with carbon fiber far-infrared dryer.It is a 3D micro-registration press. It is simple, convenient and accurate to print. Dryer is equipped with far infrared heating probe. Heating time can be set. The drying area is 16x16 inches.
• Requirements for making plate. Length:the length of the printed pattern should be within 17 inches. Printing width: The distance between two ribbons is 0.15 inches. The center-to-center distance for 0.6 inches ribbon is 0.75 inches; The center-to-center distance for 0.8 inches ribbon is 0.95inches; The center-to-center distance for 1 inches ribbon is 1.15inches; The center-to-center distance for 1.2 inches ribbon is 1.33 inches; The center-to-center distance for 1.6 inches ribbon is 1.73 inches.
