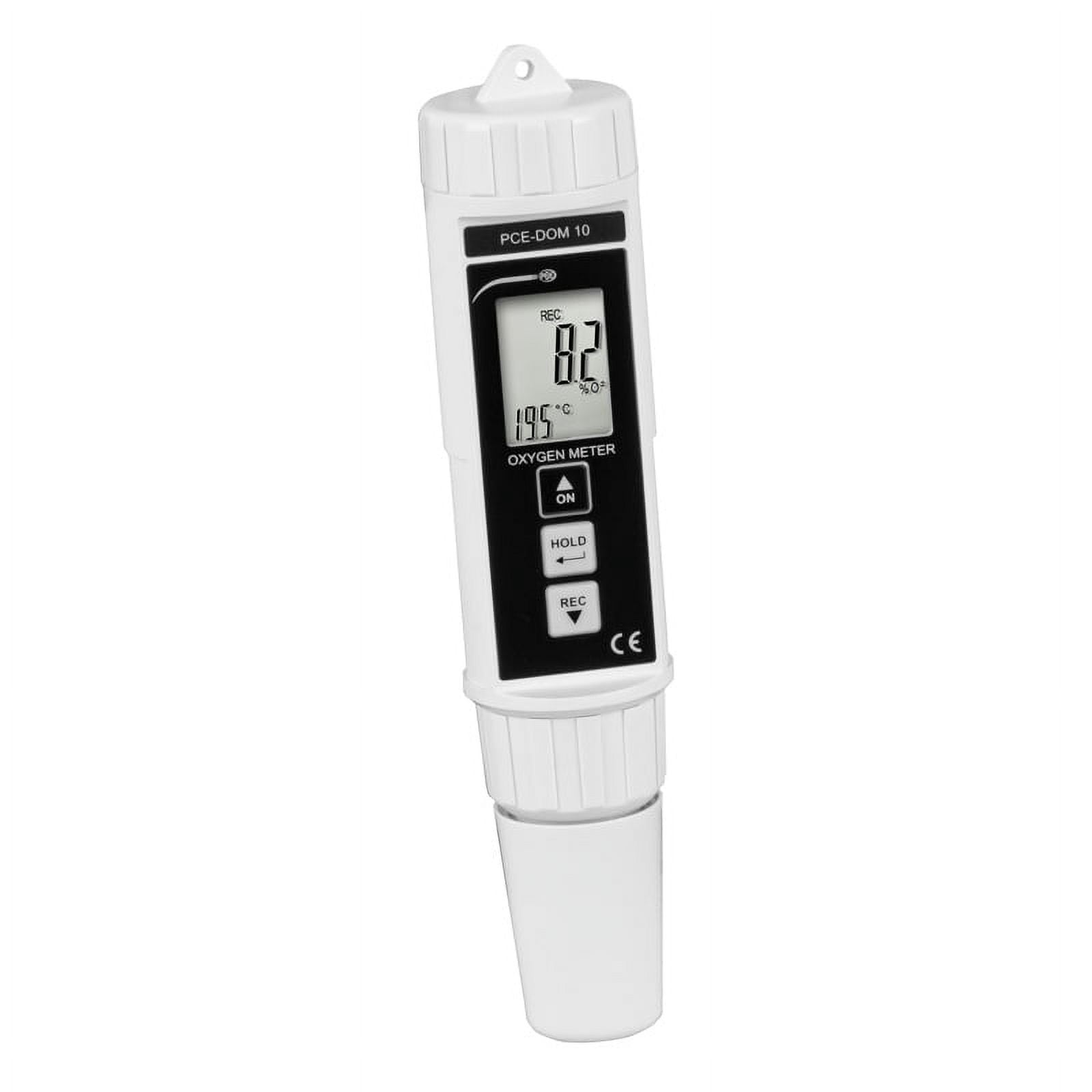

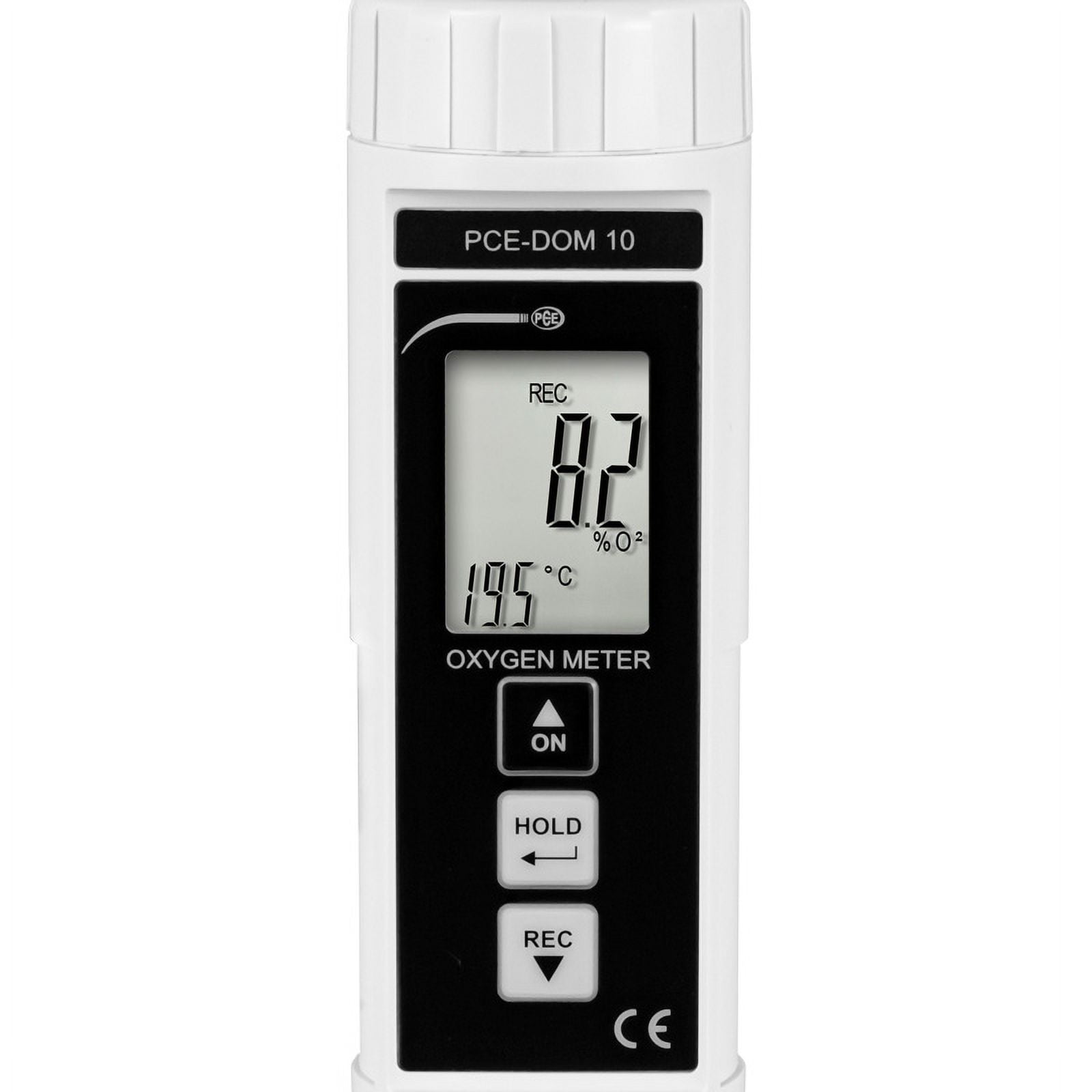

Oxygen Meter PCE-DOM 10

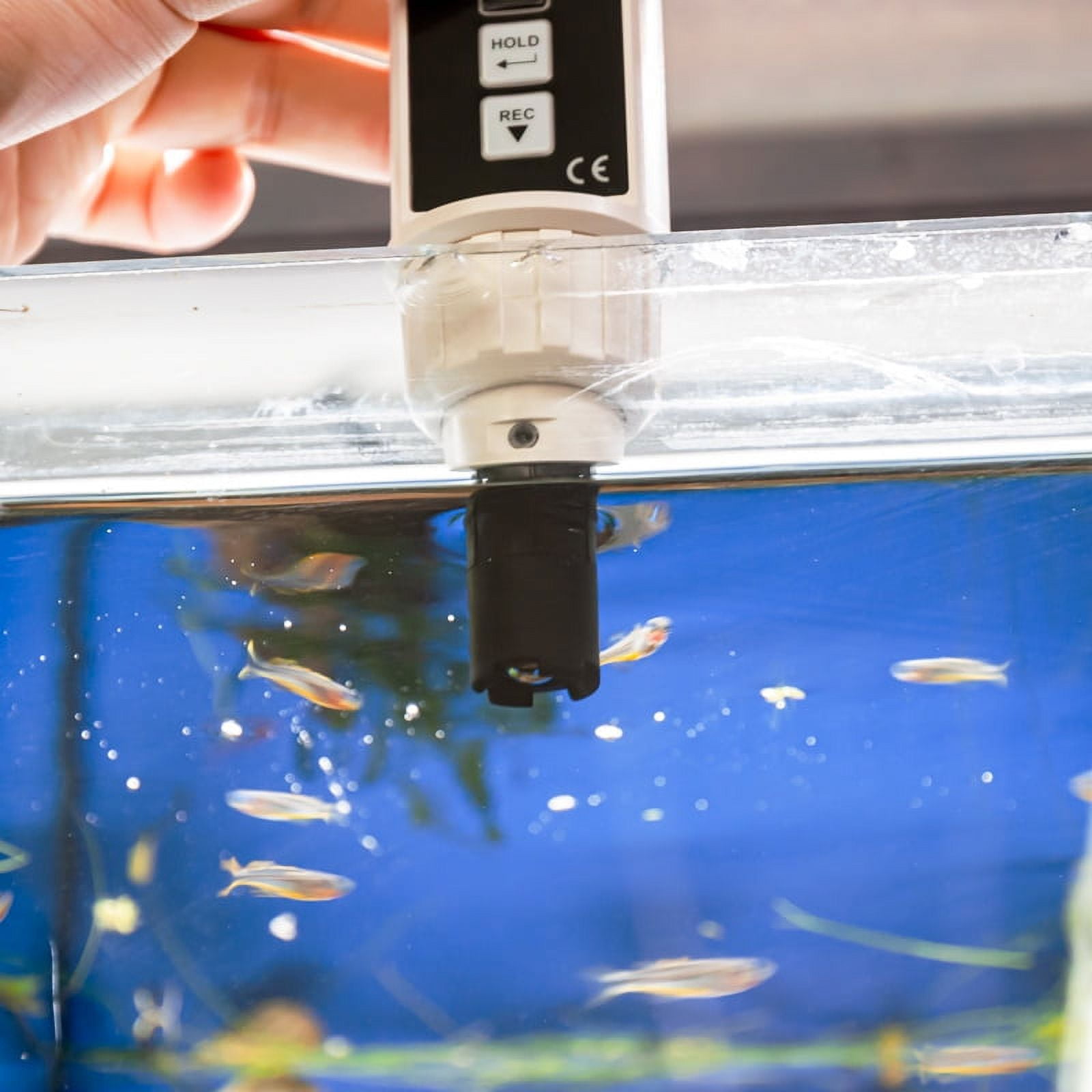

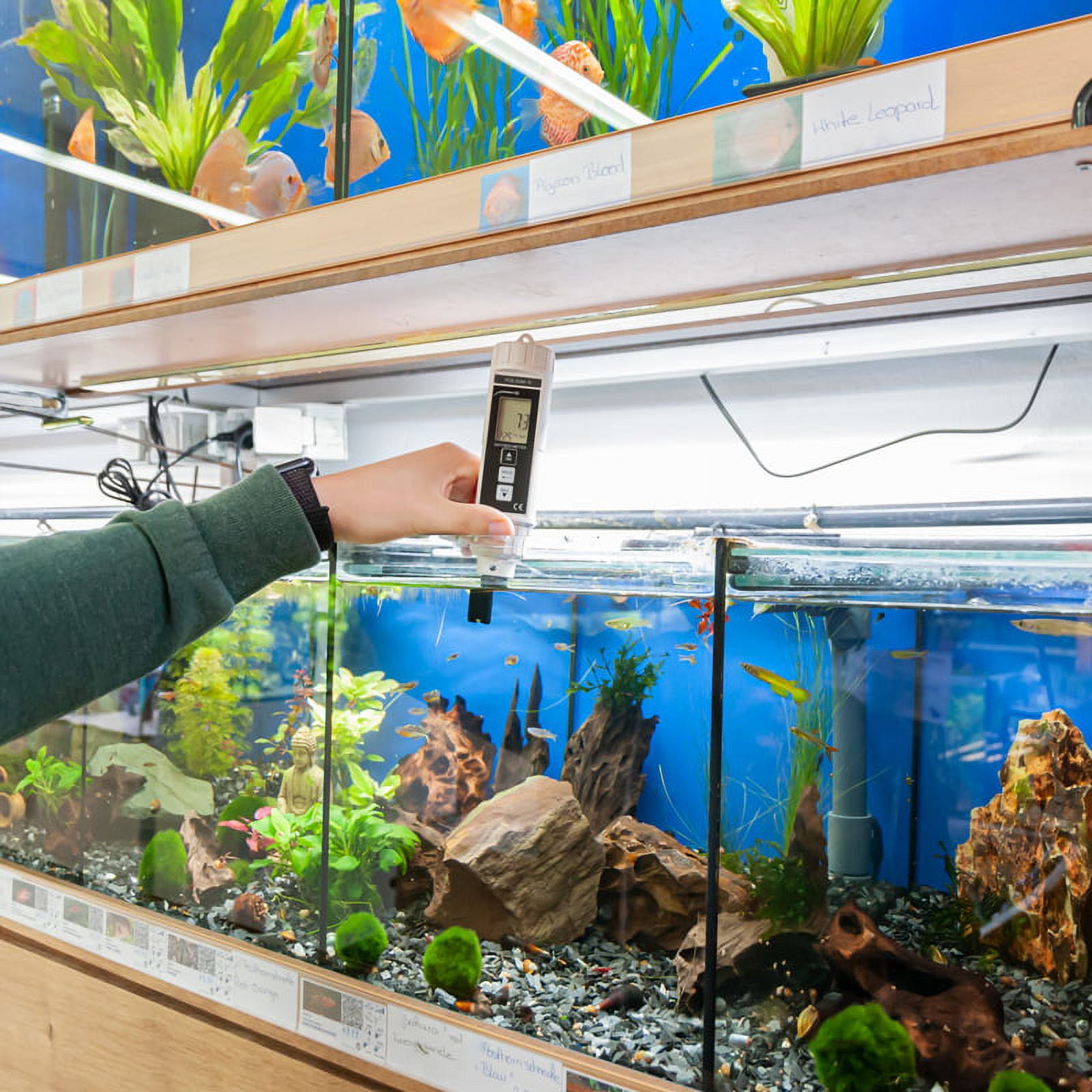

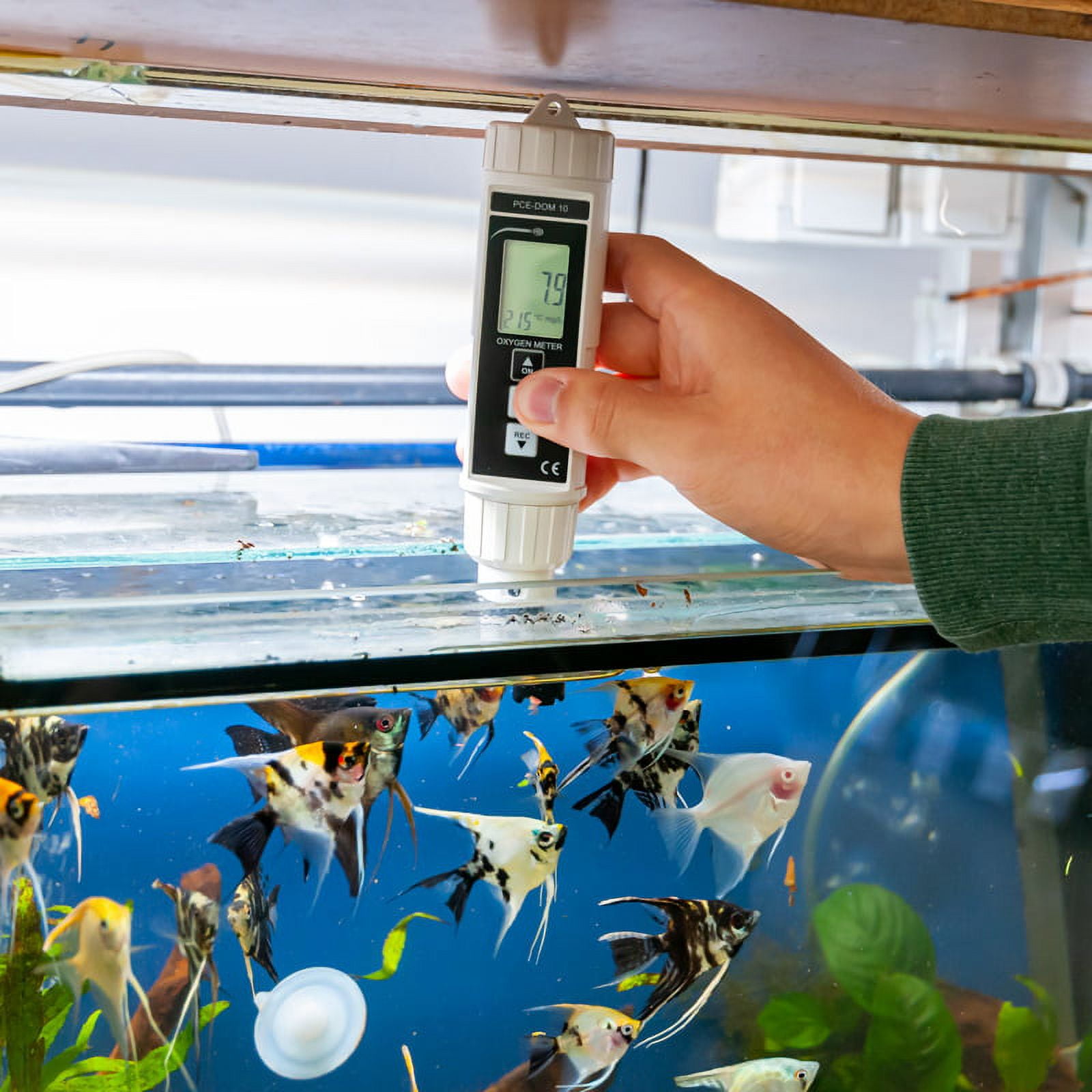

The oxygen meter PCE-DOM 10 is a measuring device to determine the oxygen content both in liquids and in the ambient air. With this oxygen meter, water analysis can be carried out on the oxygen content in a very short time and with an integrated temperature sensor, the oxygen meter is able to carry out an automatic temperature compensation. As a result, the oxygen meter is also used for analyzing the oxygen content of lakes or streams, as strong temperature fluctuations can occur here, which falsify the measurement result. This oxygen meter is also used, for example, in fish farming. Before the initial start-up, the sensors on the oxygen meter are initially dry. In order to carry out a measurement, the sensors of the oxygen meter must be provided with the electrolyte supplied. Even if the membrane is possibly damaged, it can be replaced with the oxygen meter in just a few steps. This ensures that the oxygen meter is ready for use again within a very short time.

Oxygen in liquids
Measuring range: 0 ... 20 mg / L
Resolution: 0.1 mg / L
Accuracy: ± 0.4 mg / L

Oxygen in the air (reference measurement)
Measuring range: 0 ... 100%
Resolution: 0.1%
Accuracy: ± 0.7%

Temperature
Measuring range: 0 ... 50°C / 32 ... 122°F
Resolution: 0.1°C / 0.18°F
Accuracy: ± 0.8°C / 1.4°F

- Measuring range up to 20 mg / L
- For oxygen analysis
- Temperature compensation up to 50°C / 122°F

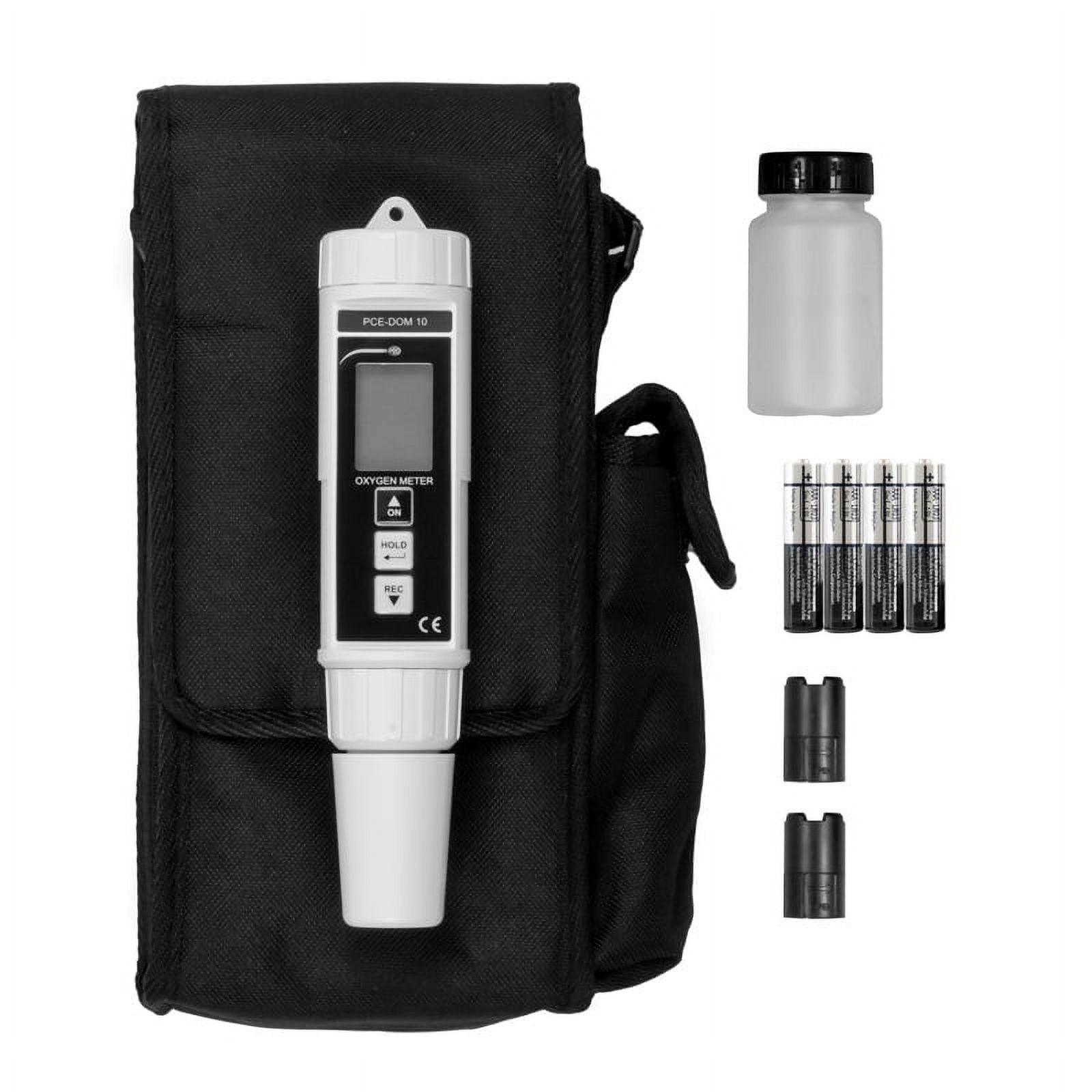

- Electrolyte included
- For measurements in liquids and in air

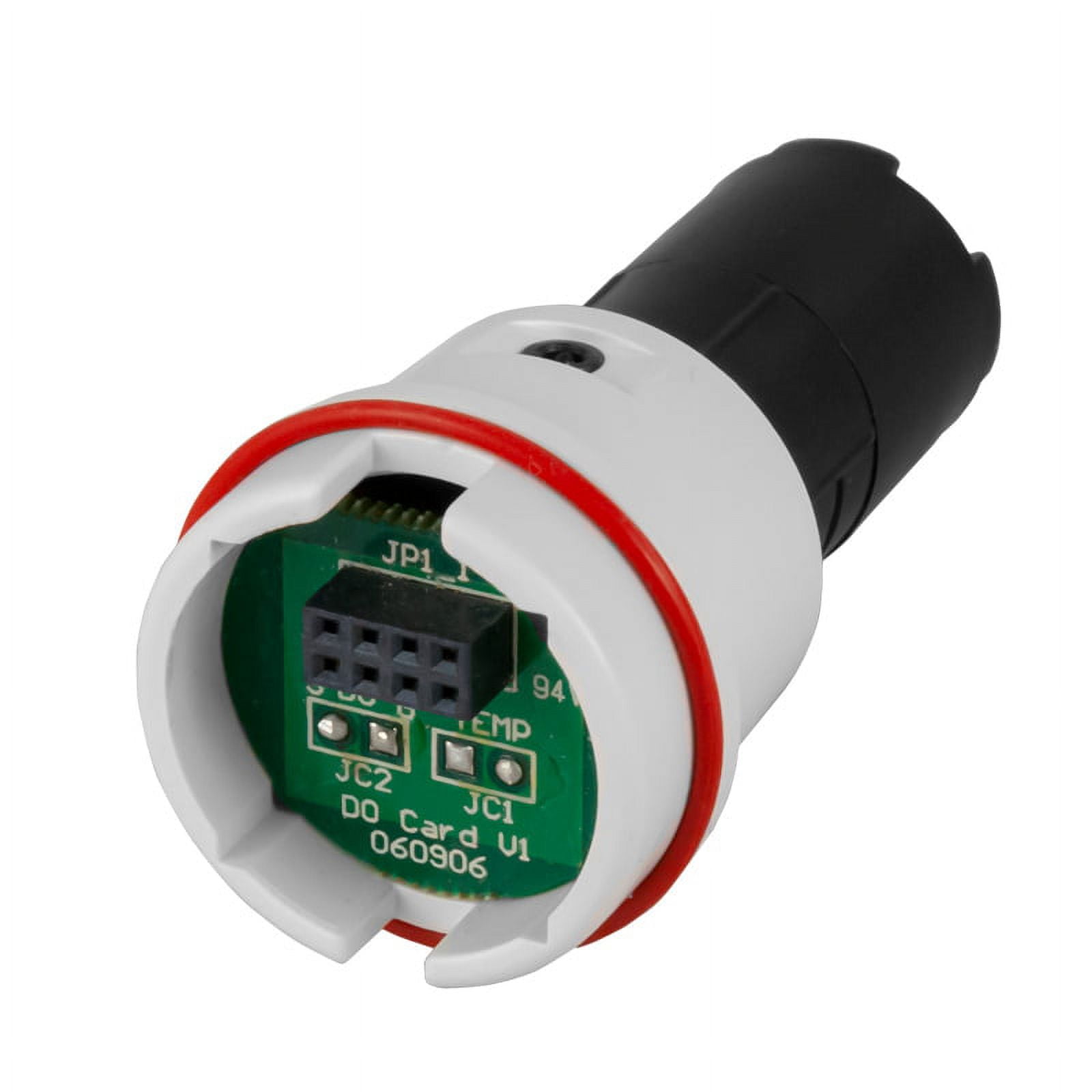

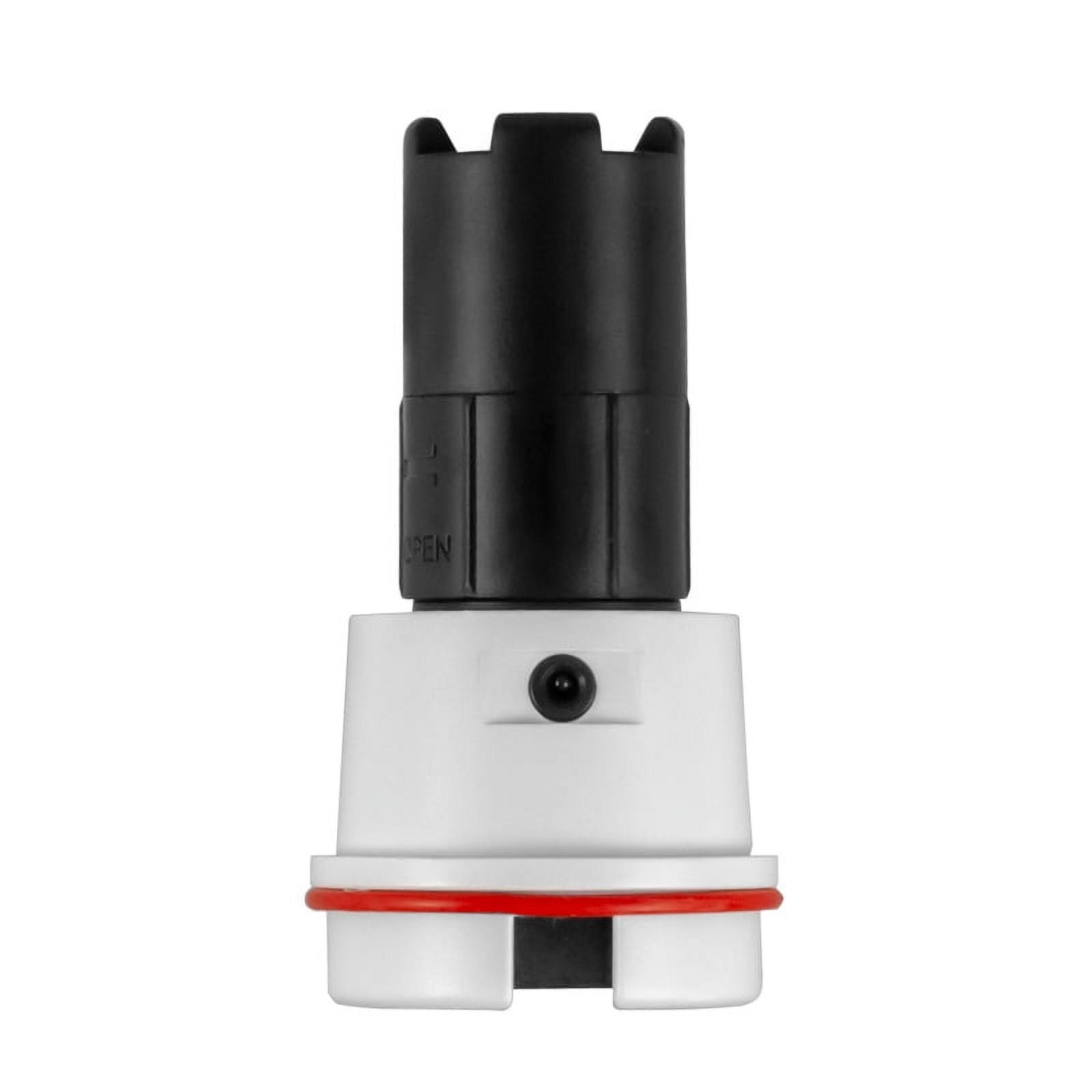

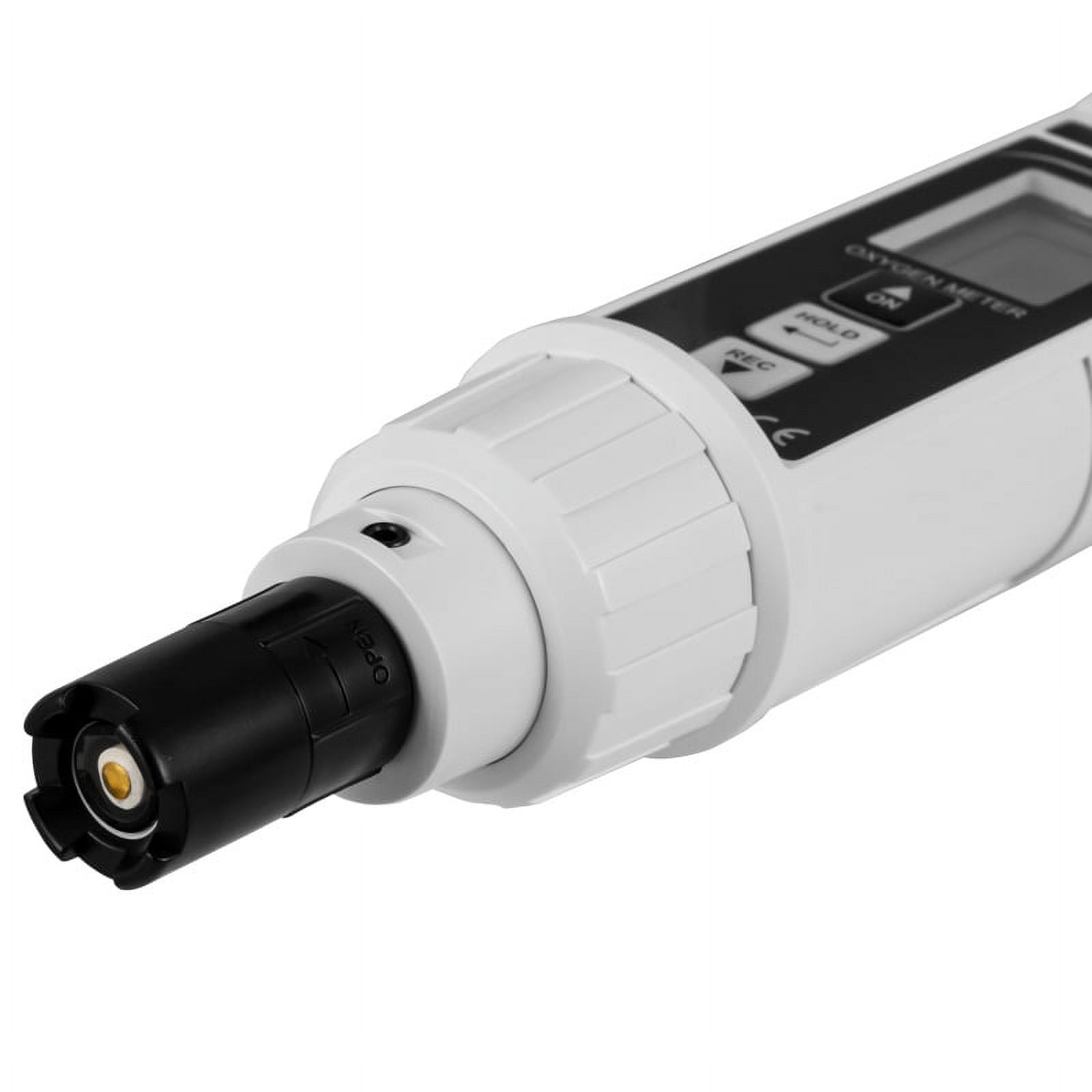

- Exchangeable oxygen sensor

Brand	PCE Instruments
Measurement accuracy	0.4 mg/L
Rec. use	Industrial
Resolution	0.1 mg/L
Accessories	Electrolyte
Model	PCE-DOM 10
Assembled product weight	176 g
Air velocity accuracy	0.7%
