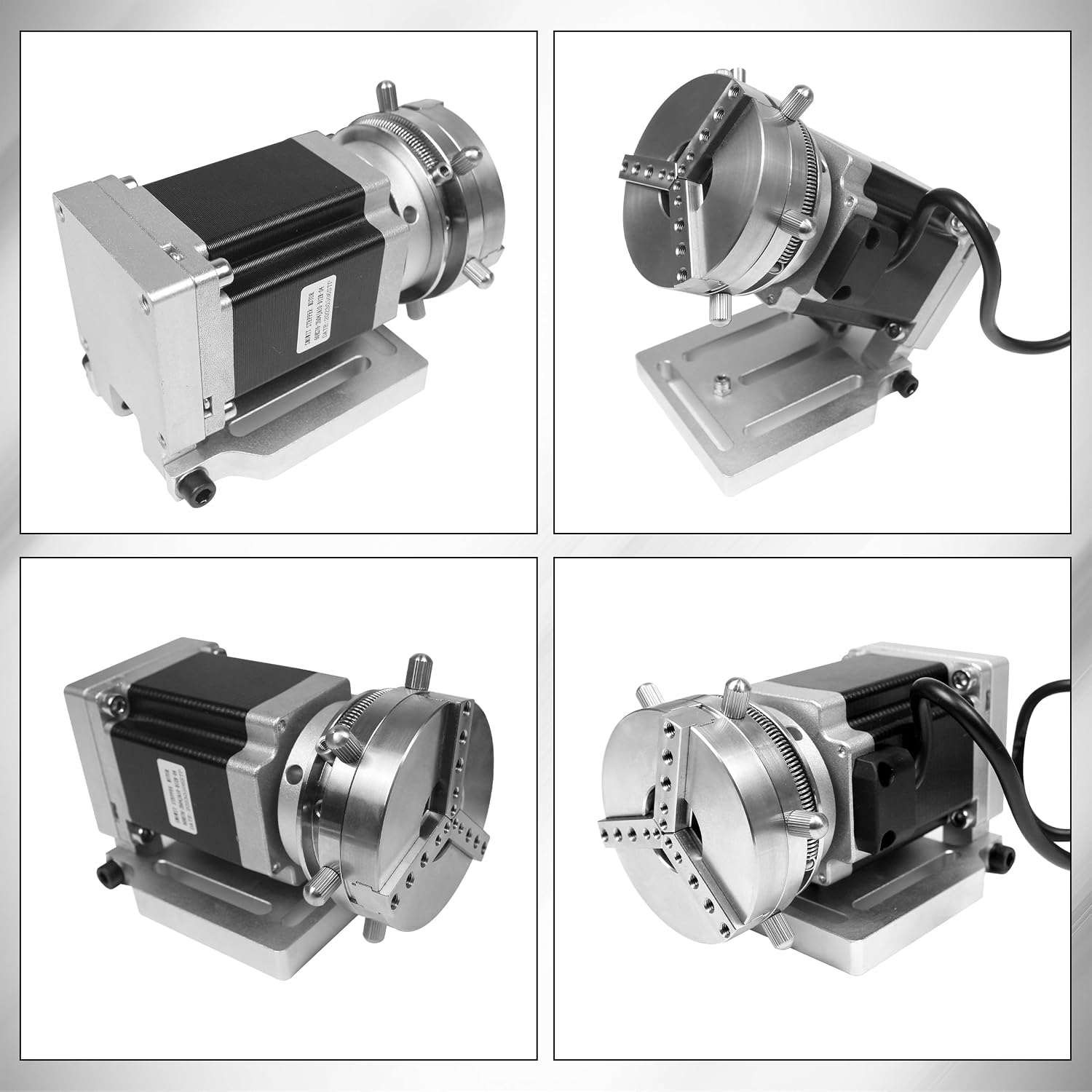

CNCTOPBAOS D69 Mini Rotary Axis with 83mm Chuck for Laser Marking Machine,Fiber Laser Engraver Machine Rotary Chuck Attachment for Ring Jewelry Bracelet Bearings Marking Tool Small Hardware Necklaces
$148.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by comt.myasdf.us
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$148.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by comt.myasdf.us
Free 30-day returns Details
Product details
| Management number | 231293389 | Release Date | 2026/06/18 | List Price | $59.20 | Model Number | 231293389 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Rotary Axis Parameters: Axis height: 1.96 inch (50mm) It can be elevated angle of 90°; External dimensions: 5.11x3.54x3.54 inch (130x90x90mm); Mounting hole size: 1.96x1.96 inch (50x50mm) M5/M6 screw; The inner clip application range: for products with an outside diameter of 0.07-3.26 inch (2-83mm); The outer support application range: for products with an inner diameter of 0.43-3.58 inche (11-91mm)
- Features: Adopting high-quality stainless steel material to maintain stable rotation of the rotary axis,the surface is carefully polished to make it have good corrosion resistance, not easy to be oxidized and rusted and always ensure highly accurate accuracy
- Advantages: Supports 90° rotation positioning and manual locking, with adjustable angles and simple methods;The turntable elastic clamping ensures fast loading and unloading, maximizing work efficiency; With accurate clamping forcewhich can effectively prevent loosening and slipping of the marking parts
- Specifications of Stepper motor: Hybrid Nema24 type;1.8 degree;Holding Torque: 2.3N.m; Rated Current: 3.5A; Frame Size: 60x60x76mm; Lead: 4-Wire; Matched driver model: DM556S etc
- Widely Applications: The rotary axis has a wide range of applications and can be used in laser marking machines, laser welding machines, laser engraving machines,and mainly used for light and short products such as rings,bracelets,bearings,necklaces and jewelry etc
| ASIN | B0CNXGXZBF |
|---|---|
| Item Weight | 5.24 pounds |
| Manufacturer | CNCTOPBAOS |
| Item model number | D69 |
| Package Dimensions | 10.2 x 8.66 x 6.69 inches |
