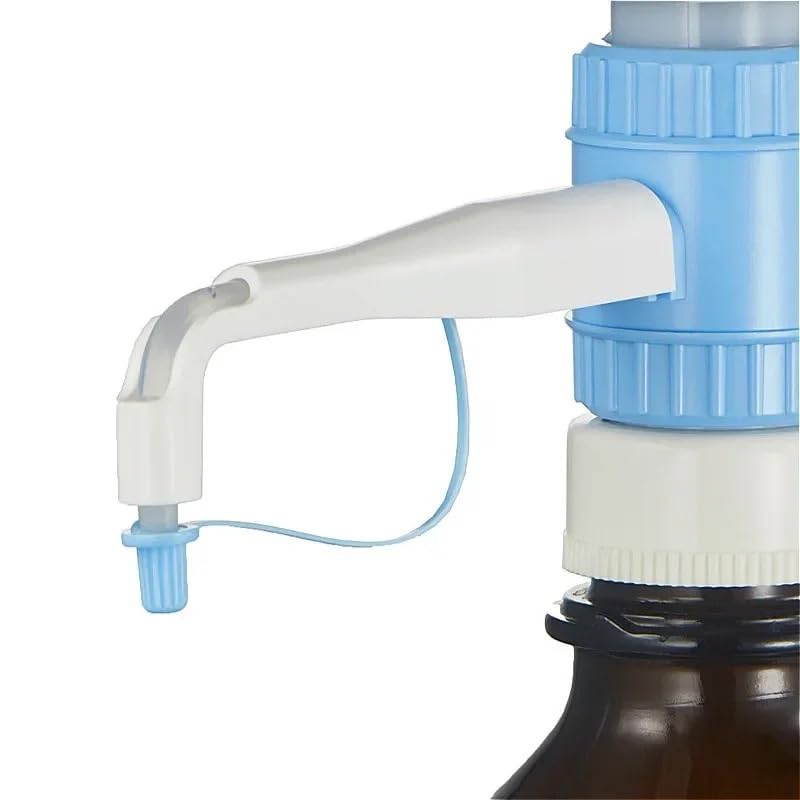

Bottle Cap Dispensing Machine, Stepper Without Brown Reagent Bottle, Laboratory Brand Laboratory kit Tool 1-10ml(0.5-5ml)

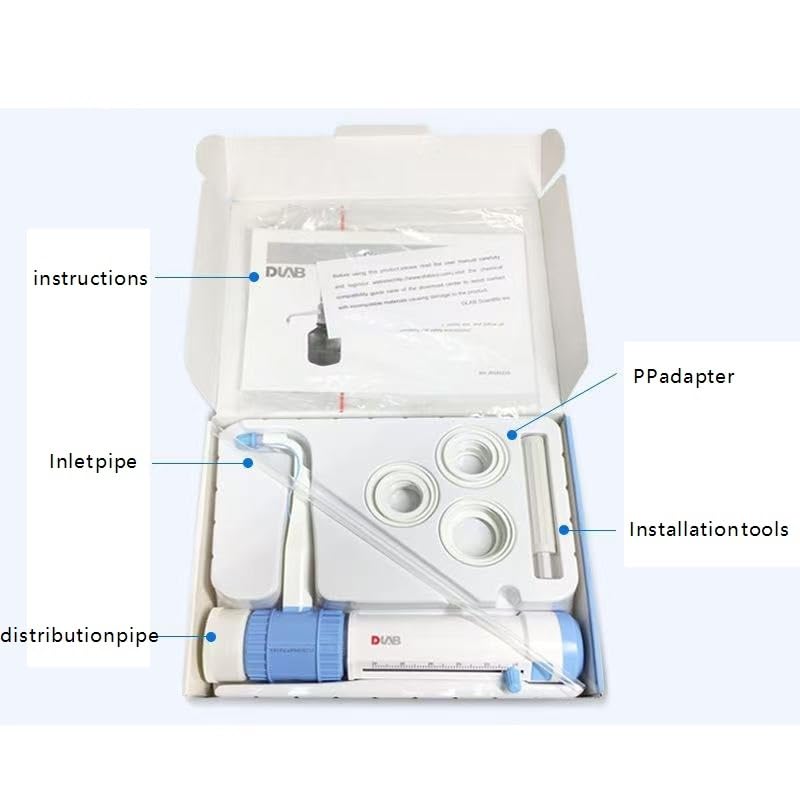

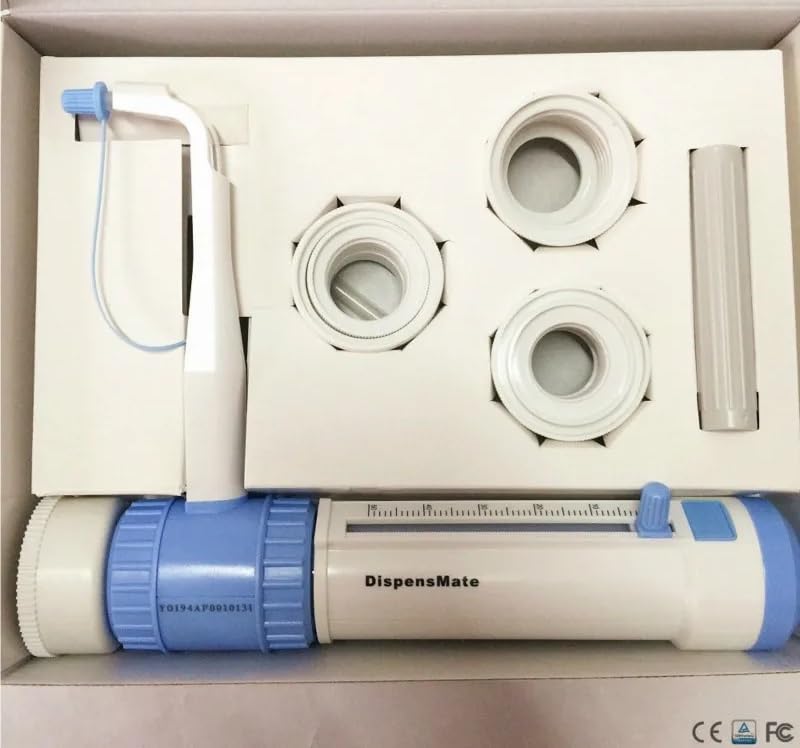

Bottle Top Dispenser Without Reagent BottleFeaturesExcellent chemical resistance, components are made of PTFE, FEP, BSG, PP.Four ranges of bottle-top dispenser covering a volume range from 0.5mL to 50mLEasy for cleaning and maintenance.The optional flexible discharge tube with safety handle permits fast and precise dispensing.Vapor pressure max. 500mbar, viscosity max. 500mm2/s.Temperature max. 40oC, density max. 2.2g/cm3.S40, GL32, GL38,GL25, GL28. SpecificationPackage listing:How to use ?1. Install the pipetteAccording to the size of the reagent bottles used to cut the appropriate length of the suction pipette.Manually with a fixed suction tube with a threaded end of the mouth to tighten the bottom of the bottle distributor on the valve.2. Install the return lineInsert a straight end of a short, one-sided, clear, return line into the socket on the bottom of the bottle dispenser next to the aspiration tubing valve.3. Install the manifoldSecure the dispensing tube with the white plastic support sheath to the horizontal connector on the front of the bottle dispenser through the retaining nut on one end of the dispenser Note that the cartridge is tightened before tightening the nut.4. Install to the reagent bottleIf the diameter of the reagent bottle is smaller than the diameter of the reagent bottle, it can be connected with the three screw adapters (diameter: A32. A38 and the diameter of the screw thread) S40) to be transferred to the used reagent bottle.5. Prepare the pipetteHold the reagent bottle in one hand and turn the bottle dispenser in one hand so that the label of the dispensing tube and the reagent bottle is facing the operator Put the liquid container under the dispensing tube mouth Remove the sealing cap of the dispensing tube (I.e., in the direction of the dispensing tube interface) so that the cap is inserted into the fixed position.6. In addit

• Excellent chemical resistance, components are made of PTFE, FEP, BSG, PP.

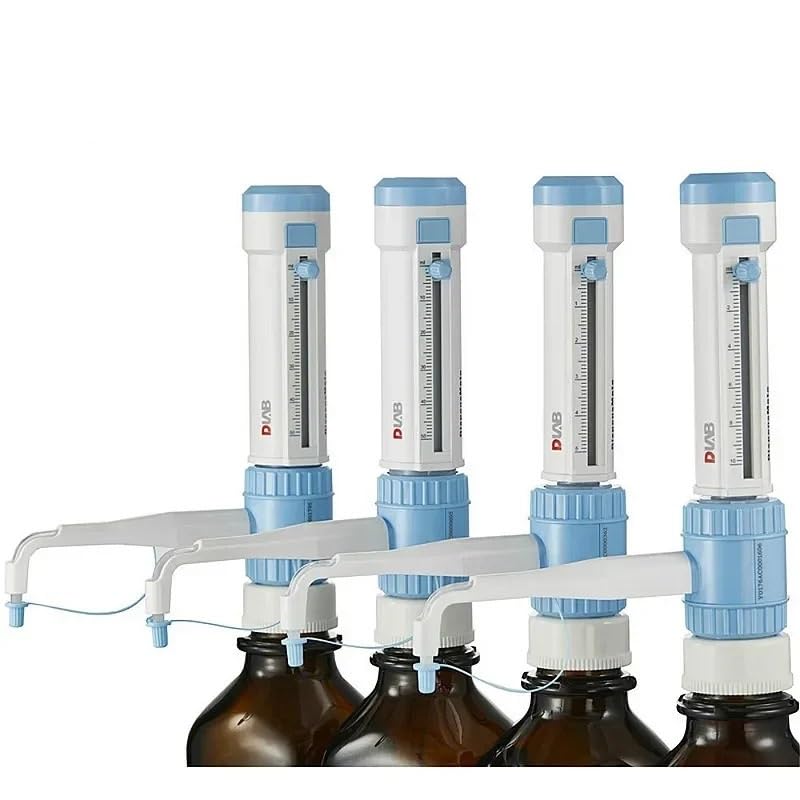

• Four ranges of bottle-top dispenser covering a volume range from 0.5mL to 50mL
• Easy for cleaning and maintenance.
• The optional flexible discharge tube with safety handle permits fast and precise dispensing.
• Vapor pressure max. 500mbar, viscosity max. 500mm2/s.Temperature max. 40oC, density max. 2.2g/cm3.
