120-150 PSI Air Pressure Switch 1/4 NPT Controller for Air Compressor Tank Suspension with Relay 85 Wire and GND Ground Wire

The function of the air pressure switch is to monitor whether the air pressure of the equipment is within the safe threshold. When the air pressure reaches the upper limit, it automatically cuts off the power to protect the equipment. When the air pressure drops to the lower limit, it restarts the operation to avoid frequent starts and stops, thereby extending the service life of the motor.This air pressure switch has highly accurate pressure sensing capabilities and can accurately trigger switch action within the set pressure range (120-150 PSI).Air pressure switch thread size is 1/4-inch NPT. Pre-wired with relay 85 wire and GND ground wire for quick integration into existing systems.Suitable for various pneumatic systems, such as HVAC systems, air compressors, air tanks, and suspension systems.Package includes: 1 * 120-150 PSI 1/4 NPT Air Pressure Switch with Dual-wire

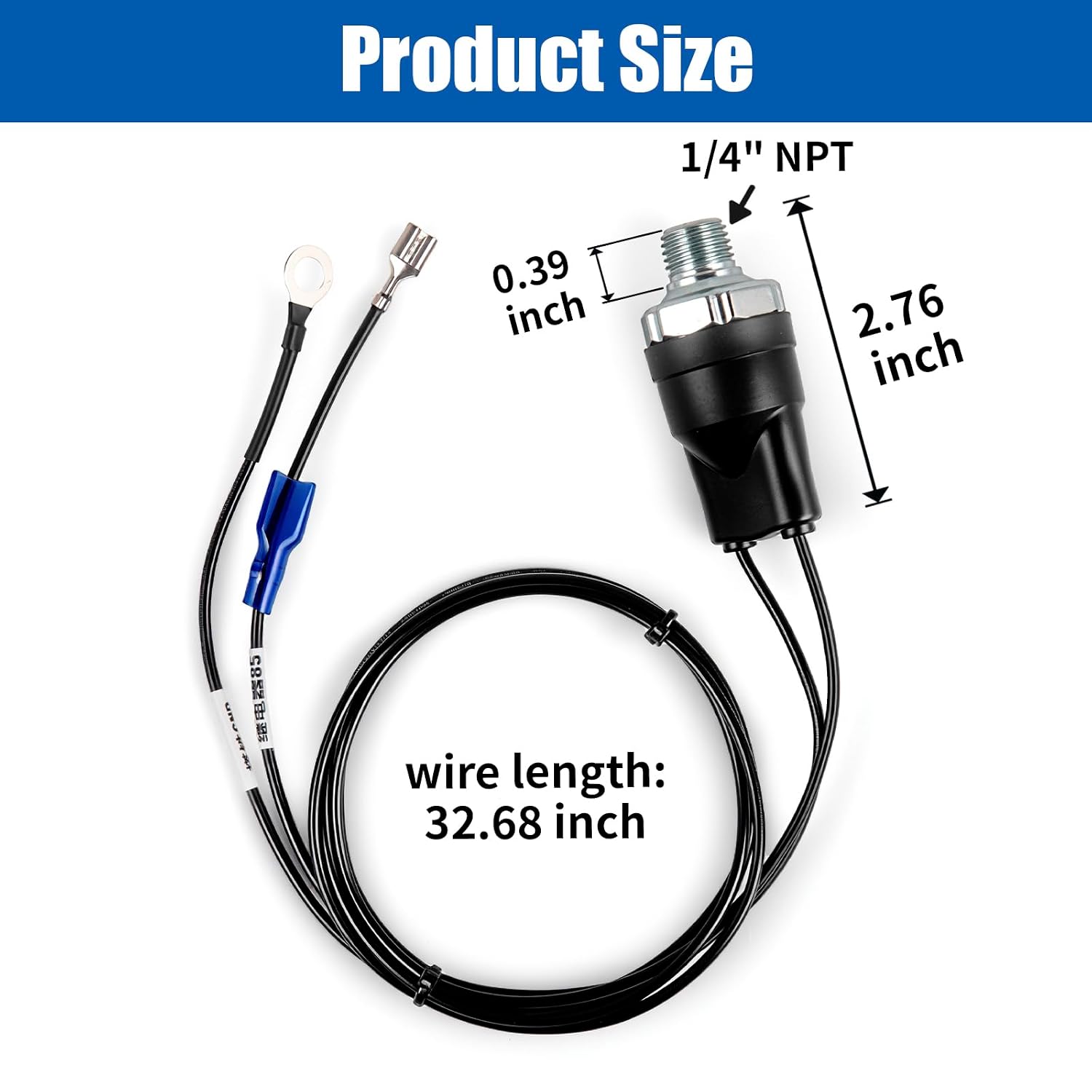

• Dual-wire System: Air pressure switch thread size is 1/4-inch NPT. Pre-wired with relay 85 wire and GND ground wire for quick integration into existing systems.
• Precise Pressure Detection: This air pressure switch has highly accurate pressure sensing capabilities and can accurately trigger switch action within the set pressure range (120-150 PSI).
• Power Supply Compatibility: Compatible with 12V and 24V DC power supplies, as well as 110V, 120V, and 240V AC power supplies.
• Wide Range of Applications: Suitable for various pneumatic systems, such as HVAC systems, air compressors, air tanks, and suspension systems.
• Service: Prioritizing Your Shopping Experience. Devoted to Supplying Top Products and Excellent Service, Contact Us for Swift and Dependable Replies.
